Accuracy
10-40C (50-104F)
20 min
Charge Time
Temperature Units
C/ F
PETG
Construction
LithiumBattery
Range
0-500 V DC
0-90 V AC
Weight
197 gr (.434 lbs)
TruIDL Data Logger
The TruIDL (Immersible Data Logger) measures voltage over the surface of the ware as it moves through the tank in an E-coat paint system. Voltage is directly related to the amount of E-coat paint film that has formed on the ware, and the TruIDL enables run data to be quickly analyzed. The TruIDL is battery powered and communications are handled by a Mini USB connection. Your PC along with Microsoft Excel (2007-13) is used to communicate with the Logger. Once removed from the ware after the last rinse, the TruIDL’s run data is downloaded back to the same Excel file for viewing.
TruIDL
TruIDL
TruIDL - Whats inside!

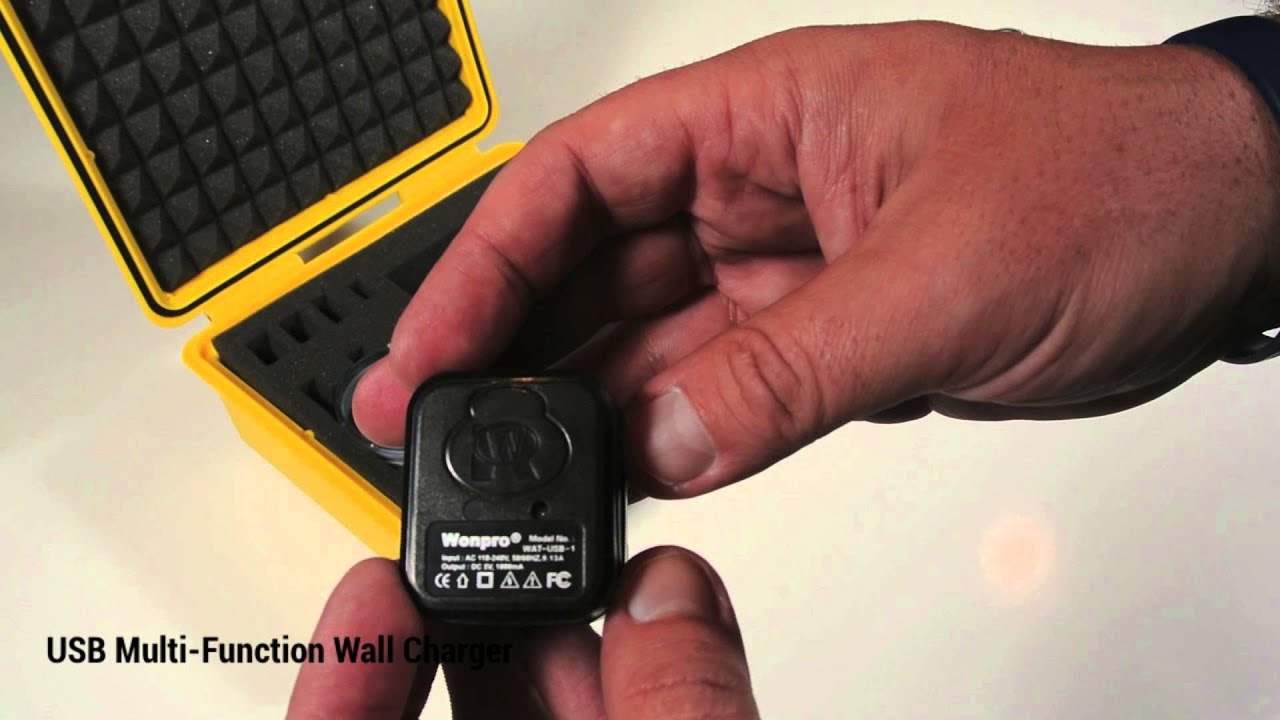

Charging the TruIDL
Connecting the Harness to the TruIDL
FEATURES
Miniature; battery operated; up to 10 voltage sensors.
USB connectivity to computer; uses Microsoft Excel as the communications portal.
LED lights display functional working status.
Leak proof container; grounding via magnets or auxiliary wire; carrying case.
Measures Bath Temperature (TC10 only).
Voltage sensor coiled wire is color-coded to simplify record keeping for placement locations on the ware.
Accessories
Carrying case w/foam cuts.
Micro USB cable, Wall USB Charger.
9 volt battery and test clips.
Nylon Brush.
Petroleum Jelly.
Quick Start.
TSA & Customs Forms.
BENEFITS
Quantifies the film thickness.
Can be installed before pretreatment with
Harness Extension cable or Protective Jacket (optional).
Monitors overall performance of anode cells and alerts to possible poor performance, grounding, and DC rectifier issues.
Measures as many as 10 places over a large or complex ware shape.
Can be used along with/or in lieu of Anode Monitor System.
Properties
Adjustable sample rates from 0.062 seconds per sample up to 4 seconds per sample.
Only control is a tilt switch.
Over sampling is a parameter to compensate for noisy conditions by using an averaging process.
The TC5 & TC10 TruIDL Logger are for cathodic E-coat paint tank. TC5A is the anodic version.
Manual
FAQ's
PDS
Forms
References
Technical Specifications
Set Up
Temperature Units: C or F
Interzone Time Out: 0-200 seconds
Trigger DC V Level: 5,6,7,or 8 V DC
Battery Charge Time: 20 minutes with wall charger
Battery Type and Rating: Lithium polymer: 4.2 V @ 90 mAh
Battery: Awake~90 minutes Sleep~2 weeks
(Recharge if needed)
Weight: 197 grams (.434 lbs)
Dimensions: 8.3 cm ø x 4.5 cm tall (3.27"x1.77")
Carrying Case: Weight 200 grams (5lbs) 27.4cm x 25cm x 11.4cm (10.7"x 9.8"x 4.5")
Logger Construction: PETG, clear body with blue cap
Operating Range
DC Voltage: 0-500 V DC
AC Voltage: 0-90 V AC
Accuracy: 10-40 C (50-104 F)
Resolution: 12 bti ADC (analog to digital conversion)
Voltage: 0.125 V
Temperature: 0.3C (.5 F)
Accuracy: +/- 2.5%
Frequency: 32MHz
Calibration
DC Voltage: 150-400 V, 10 V Increments
Temperature: 27.4-42.4 C, 0.2 C Increments
(81-109 F)
Accelerometer: To awaken/ arm
Sample rate: 32x Second
Two User Buttons: For setup/ Calibration
MicroUSB Connection: Charge battery only
Reset: Remove Cap to press button
Max Log Time: 1 hour
